SPECIFICATIONS



Certification: CE



Engine: Single Cylinder, Air-cooling, 2-stroke

Fuel Consumption: 610g/kw*h

Fuel Tank Capacity: 1.2L/50.72oz

Fuel Type: 92# Gasoline

Machine Gross Weight: 9.7kg/21.4 lb

Machine Size: 58*24*32cm/22.8*9.44*12.6inch

Material: Aluminum Alloy, Manganese Steel, PP

Type: Auger Drill Bits

Descriptioon

Specification

Fuel Consumption: 610g/kw·h

Fuel Type: 92# Gasoline

Material: Aluminum Alloy, Manganese Steel, PP

Engine Model: 1E44F-5

Color: Orange, Black

Displacement: 52cc

Engine: Single Cylinder, Air-cooling, 2-stroke

Gasoline, 2-stroke Oil Mixture Ratio: 25:1

Ignition System: C.D.I

Fuel Tank Capacity: 1.2L/50.72oz

Suitable Auger Size(Max): 300mm

Rotational Speed: 6500-8500r/min

No-loading Speed: 2800-3200r/min

Carburetor Type: Pump-film Type

Safety: Bit Lock

Bits Diameter: 10cm/4inch, 15cm/6inch, 20cm/8inch

Drill Length: 80cm/31.49inch

Extension Rod Length: 30cm/11.8inch

Matchable Drill Diameter: 6.1cm/2.4inch, 7.6cm/3inch, 10.2cm/4inch, 15.2cm/6inch, 20.3cm/8inch, 25.4cm/10inch

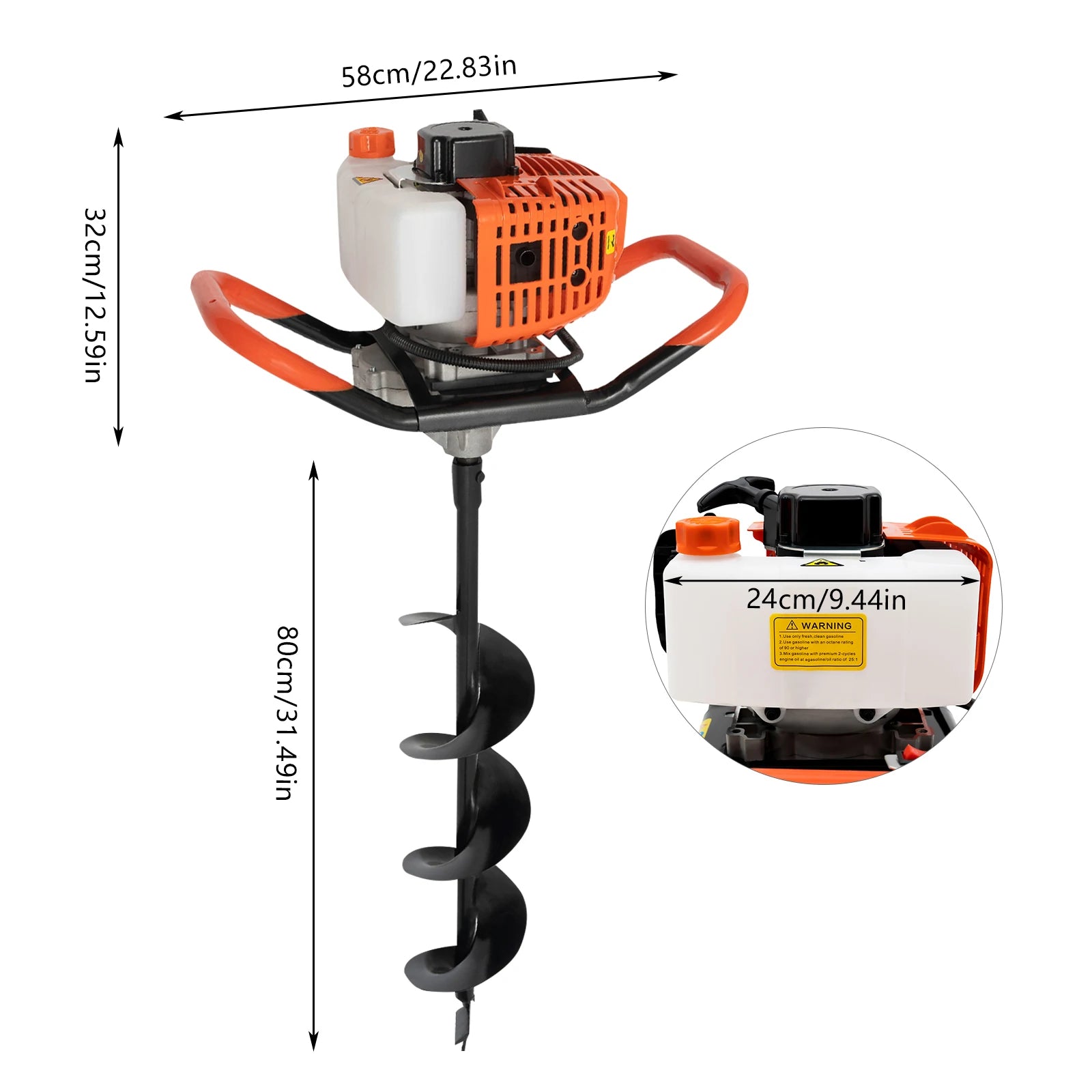

Machine Size: 58*24*32cm/22.8*9.44*12.6inch

Machine Gross Weight: 9.7kg/21.4 lb
